Paint Overspray Collector EUROSUPRA 2 – S2

 107,00 VAT excluded

 107,00 VAT excluded

In stock

Quantity discounts
6 - 19
€ 96,39 each
20 or more
€ 78,72 each
(discounts are applied in the cart; promotion subject to availability)

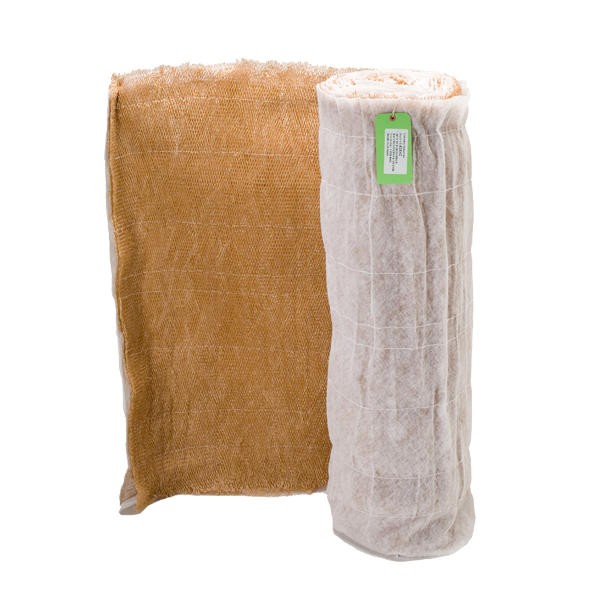

EUROSUPRA Paint Overspray Collector S2 is a Columbus Industries multilayer filter suitable for one stage filtration or pre-filtration when maximum service life with slightly drier coatings is required.

 155
 E423362
97,5 % to 98,5 % *
1 x 10 m

Take advantage of quantity discounts:
(applied in the cart)

€ 107,00
€ 96,39
€ 78,72

Description

Also known as Columbus Filters (from Columbus Industries, Inc.), raccoglivernice© Paint Overspray Collectors or Arrestors are multilayer filters used in paint mist and Overspray Filtration, to catch and capture particulates from the exhaust air of liquid paint spray booths.

Classified as Hi-tech Paint Collector, these baffle/strainer-type paint collectors consist of up to eight layers of slit and flame-retardant expanded kraft connected by longitudinal seams in silicone-free yarn.

EUROSUPRA Paint Overspray Collector (S2) consists of the following layers, in air-flow direction:

  • L (Large)
  • Lx (Large crossed)
  • Lx+ (Large crossed)
  • S (Small)
  • MM (Mini-Mesh™)
  • P2 (20 µm Polyester fine fibers)

EUROSUPRA Paint Overspray Collector features:

  • Supra line incorporates a final synthetic filtering layer to capture fine particles and provide long service life
  • high efficiency as well as excellent holding capacity
  • flame-retardant expanded kraft layers, with final back layer in mini-mesh
  • all the layers are overlapped and tied by sewing
  • suitable for one stage filtration or pre-filtration

* efficiencies detected by laboratory tests with standard paint

Product Technical Data sheet

Additional information

SKU 155
Weight 3,80 kg
Dimensions 1000 × 100 cm
Efficiencies [%]

97,5 ÷ 98,5

Dimensions H * L [m]

1 * 10

Dimensions ⌀ * H [cm]

42 * 115

Weight [kg]

3,8

Volume [m³]

0,14

Rolls in a m³

6,83

Label

Green

Packing

Polyethylene bag
